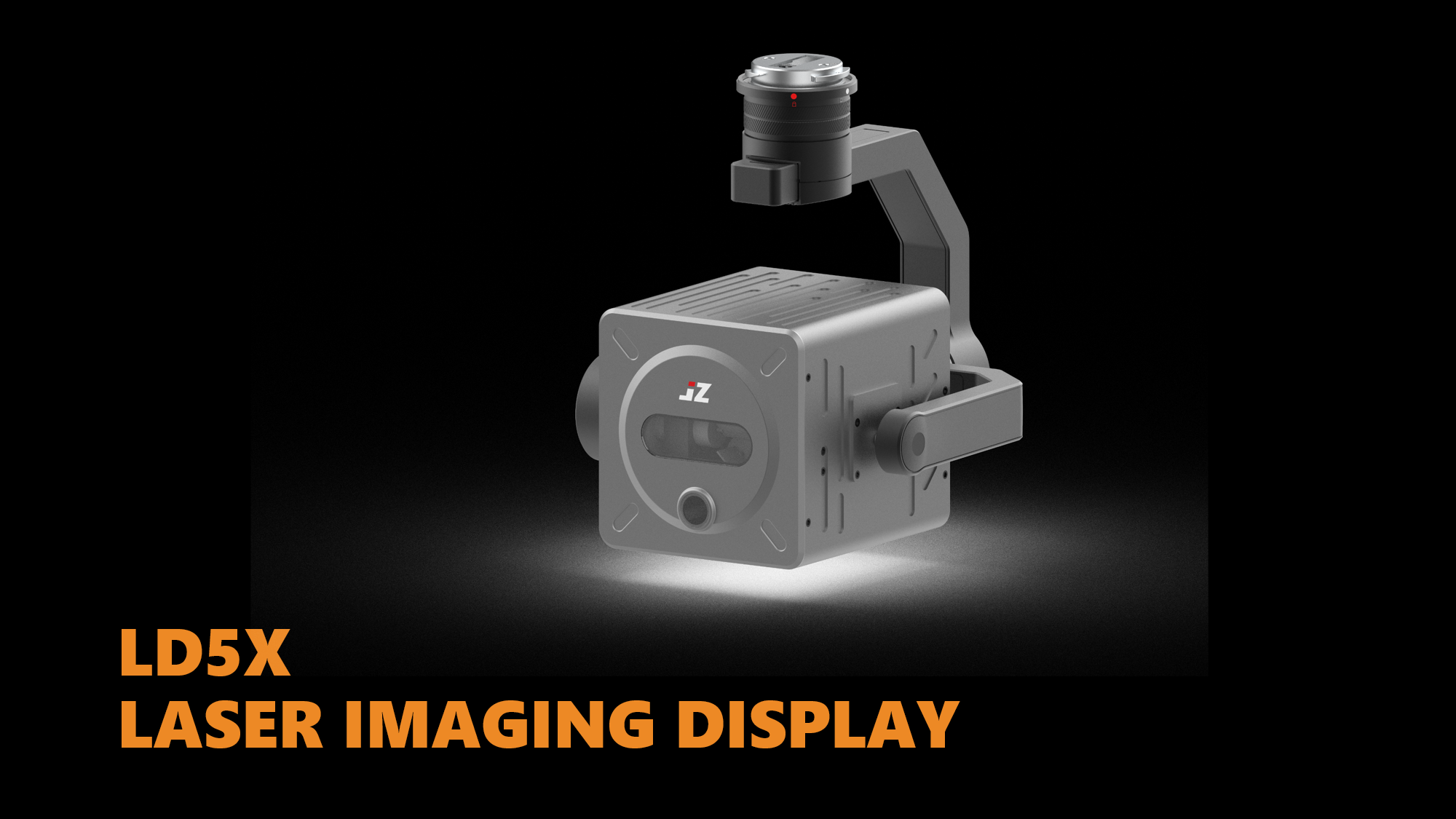

LD5X LASER IMAGING DISPLAY
JZ_LD5X Laser Imaging Display utilizes the high brightness characteristics of lasers to achieve long-distance, clear projection of text and graphics, enhancing visual effects. It uses the DJI XPort interface and is compatible with DJI Matrice 300 and DJI Matrice 350 drones. Equipped with a visual camera, it supports image adjustment and trapezoid correction. Through precise optical modulation and high-speed scanning, it achieves delicate rendering of text, graphics,and animations, suitable for various applications such as emergency command, traffic guidance, and promotional slogans.
SPEC
| Overall parameters | |
| Model | JZ_LD5X |
| Electrical interface | DJI XPort |
| Size | 170 × 130 × 160 mm |
| Weight | 900g |
| Protection grade | IP44 |
| Imaging Distance | >=100m |
| Optical Power | 5W |
| Type of Light Source | Laser |
| Supported models | DJI Martrice 300,DJI Martrice 350 |
| Voice mode | DJI Pilot2 |
| Playback Format | ild，svg |
| Operation temperature | -10 ℃ 至 +50 ℃ |
| Storage temperature | -20 ℃ 至 +60 ℃ |
