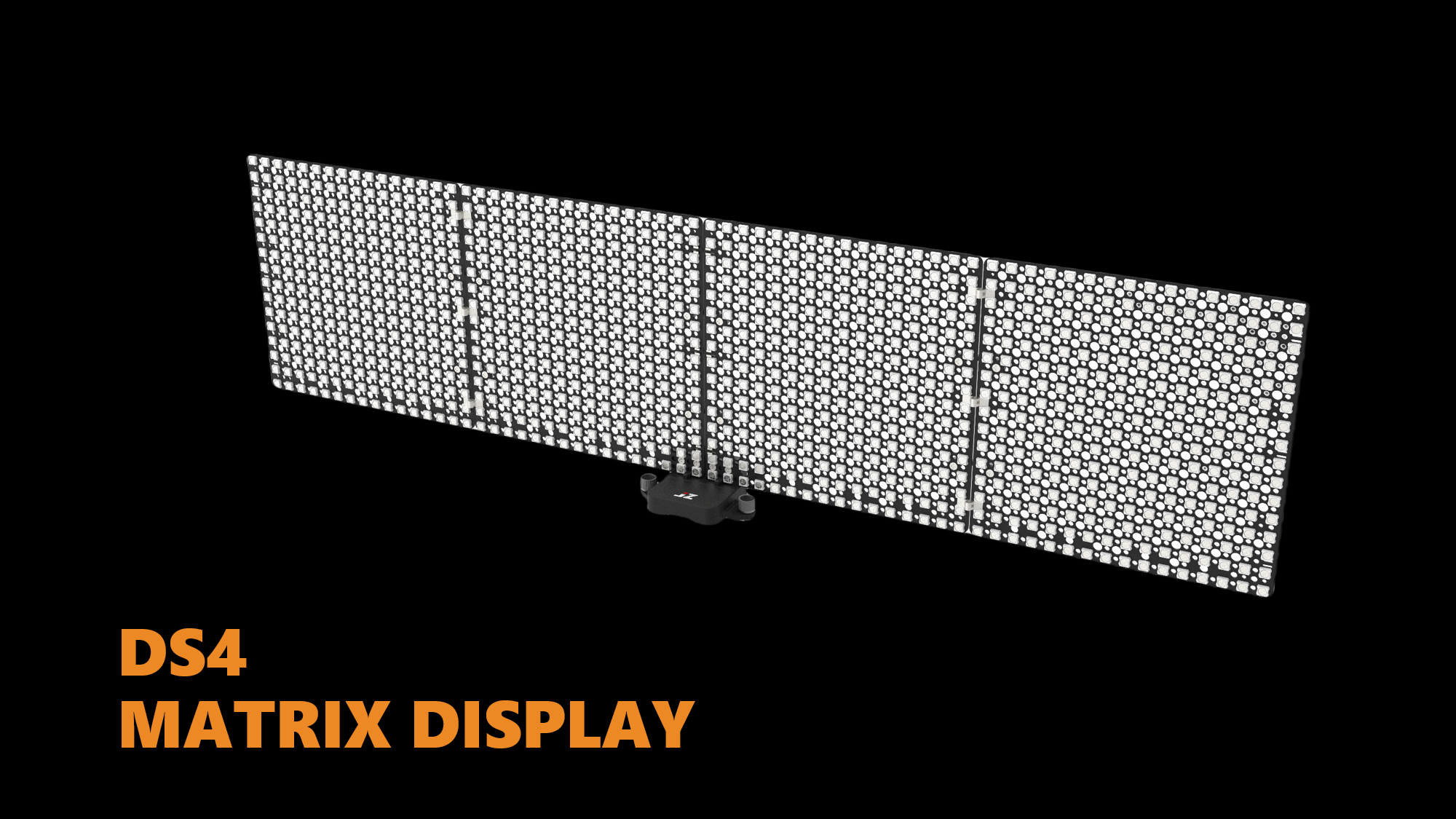

DS4 MATRIX DISPLAY
The JZ_DS4 Display, adopts a four-fold, fully hollowed-out lightweight design. It features 1024 full-color LED beads and weighs only 240 grams with a size of 23.4 inches. Supports PSDK control and wechat mini-program
control, supports text playback and multiple flash modes, and is suitable for various fields such as traffic police, public security, fire control, and maritime affairs.
SPEC
| Overall parameters | |
| Product model | JZ_DS4 |
| Electrical inter face | DJI SDK |
| Screen size | 23.4 inch |
| power | 45W |
| gross weight | 240g |
| Text playback mode | Page turning mode, carousel mode |
| Strobe mode | Single color flash, double color mode flash alternately |
| Color | Red, green, blue, yellow, white |
| Light output angle | 120 ° |
| Control method | PSDK, APP, Mini Program |
| Installation | Screw quick release |
| Tex t warning distance | 100m |
| Flash visible distance | 1000m |
| Ambient temperature | |
| Operating temperature | -10℃ to +50℃ |
| Storage temperature | -20℃ to +60℃ |
