FC30 MULTI-SEGMENT AIRDROP

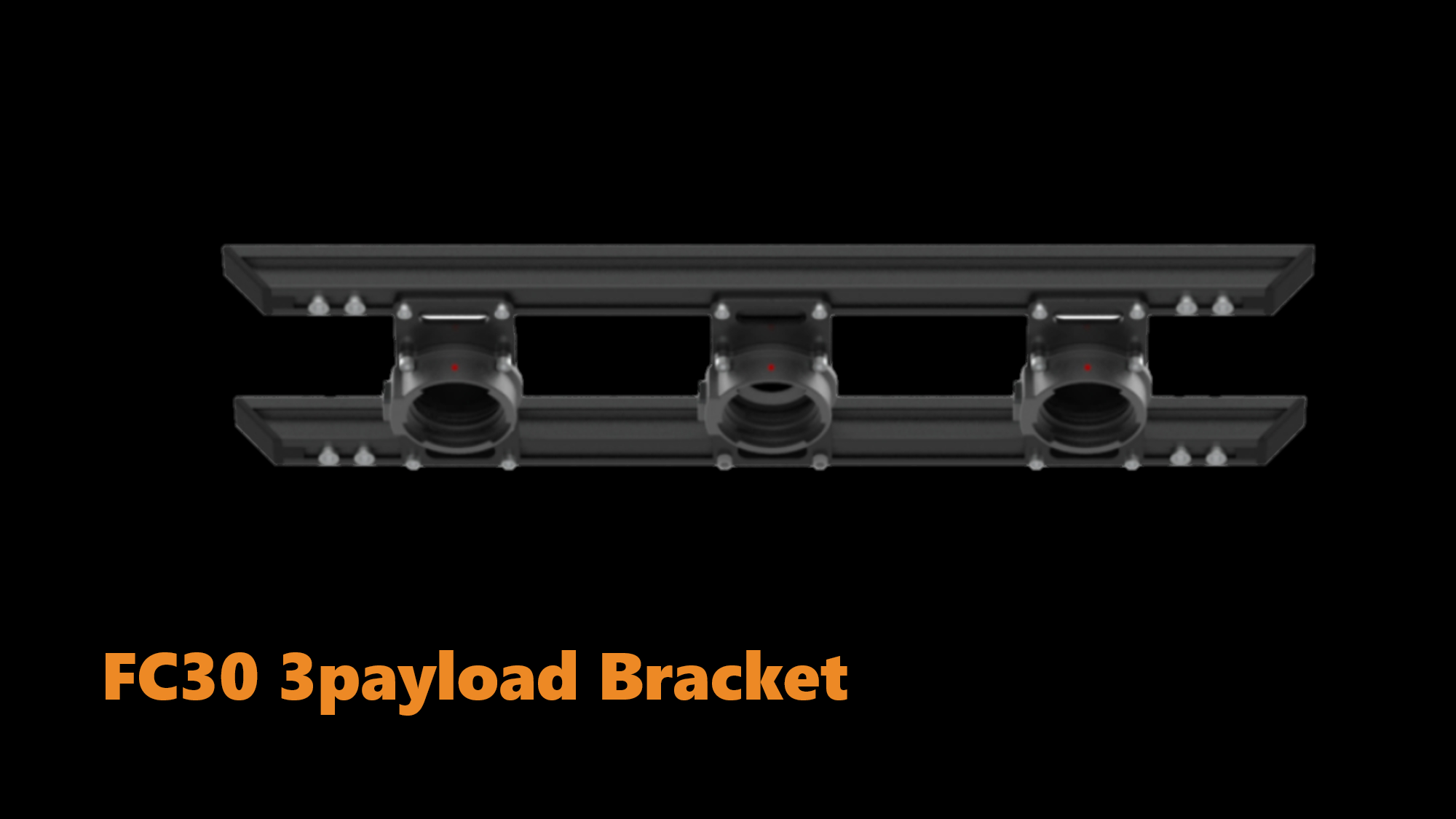

  FC30 Multi-Segment Airdrop Kit, compatible with DJI FlyCart 30 carrier, with a maximum single-hook load capacity of 10kg. The FC30 kit features a center-mounted triple-load component that can simultaneously support up to three ET4 airdrop devices, enabling a maximum payload of 120kg across 12 airdrop segments. It is also compatible with DJI Pilot2, allowing for easy mounting, mount detection, quick deployment, and one-touch full deployment. Equipped with laser-assisted targeting, ensuring precise airdrop delivery.





SPEC

Overall Parameters
Product Model FC30 MULTI_SEGMENT AIRDROP
Electrical Interface E-Port Lite
Dimensions 362×95×80m m
Weight 350g (Single Mount) + 200g (Single Airdrop) * 3
Protection Level IP4X
Supported Model FlyCart 30
Max Power Consumption ≤10W
Payload
Number of Payloads 12 stages
Individual Payload Weight Maximum 10kg,actual weight depends on the aircraft's payload capacity
Total Payload Weight Maximum 120kg, actual weight depends on the aircraft's payload capacity
Control Method DJI Pilot2
Airdrop Method Free Airdrop/One-Key Airdrop
Installation Method Quick-release ET Gimbal Port
Operating Temperature -10°C to 50°C
Storage Temperature -20°C to 60°C



Overall Parameters

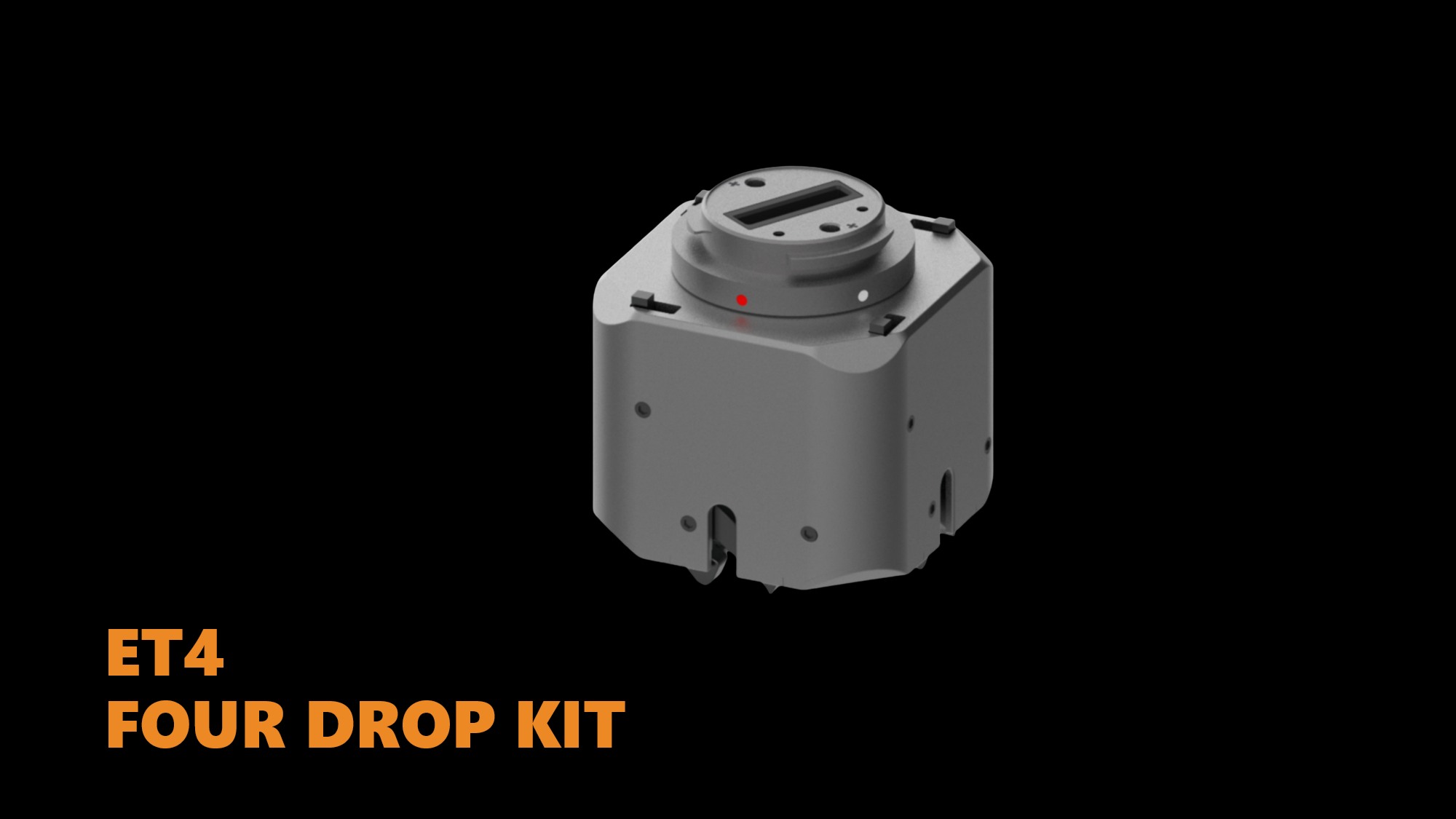

Model ET4 Four Drop Kit
Electrical Interface JZ T-Port
Size 58mm×58mm×58mm
Weight 200g
Degree Protection IP4X
Most Power ≤10W
Mount Quantity 4 Segment
Individual Mounting Weight The maximum weight is 10kg, but the actual weight should be determined based on the aircraft's payload capacity.
Overall Mounting Weight The maximum weight is 40kg, but the actual weight should be determined based on the aircraft's payload capacity
Mounting Sequence Unrestricted
Release Sequence Unrestricted
Release Capability Selective Release,One-Click Mass Deployment
Installation Method ET quick-release gimbal mount
Control Model DJI Pilot 2
Working Temperature -10 ℃ to 50 ℃
Storage Temperature -20 ℃ to 60 ℃
