T40 MATRIX LAMP

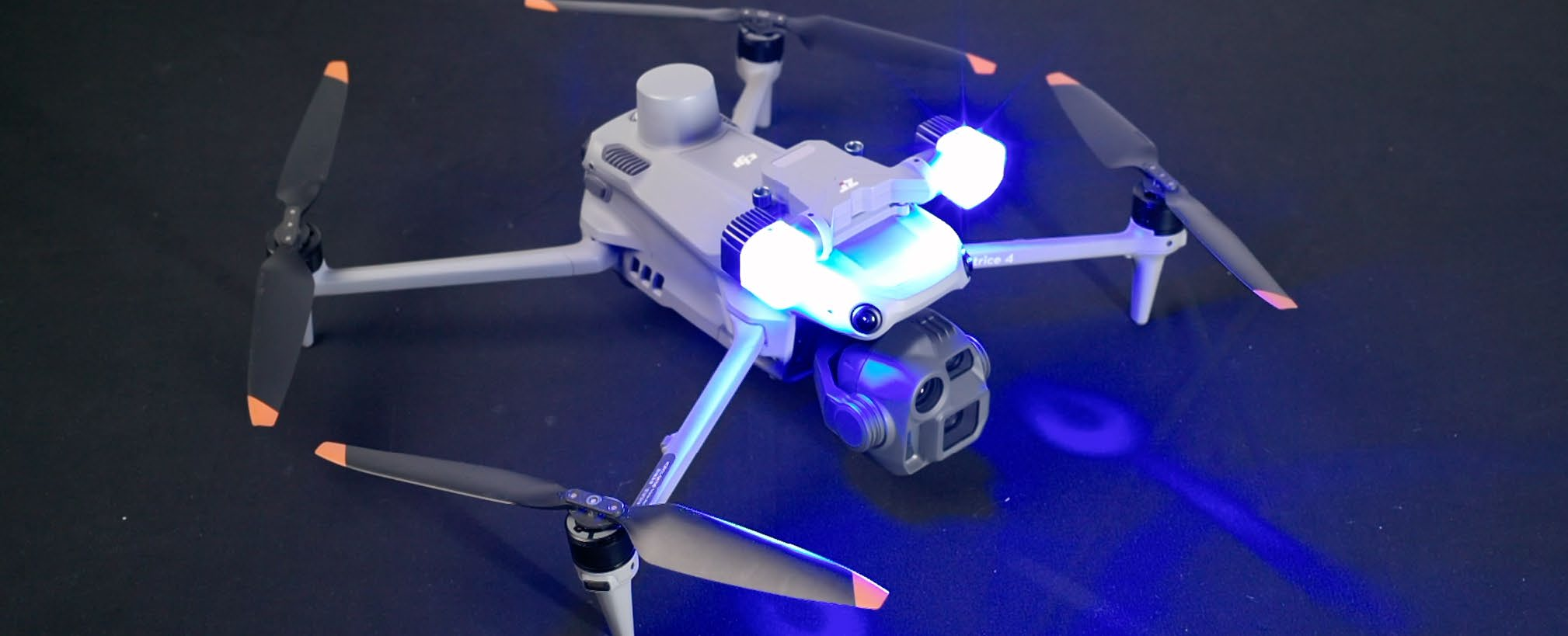

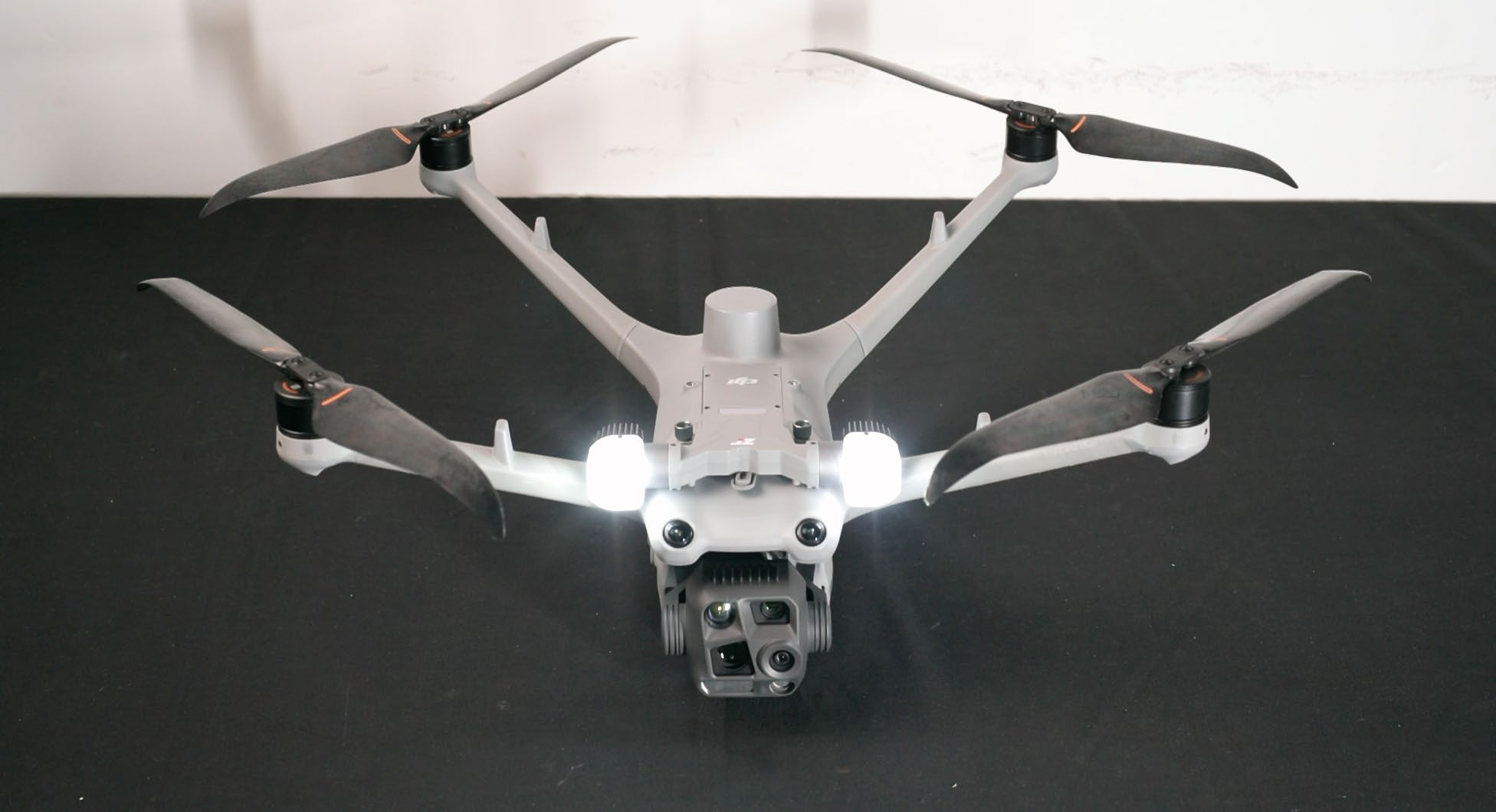

The JZ_T40 MATRIX LAMP adopts a lightweight integrated design and supports DJI Matrice 4E/4T, 4D/4TD series models. Equipped with a brushless self-stabilizing pan-tilt, it can achieve precise pitching from -90° to +35°. The lamp group integrates 6 RGB lamp beads simultaneously. The 14° focused lighting range can reach up to 150 meters, with high central illuminance and wide coverage. It supports mode switching such as brightness adjustment, strong light flash, and multi-color warning, and has a gimbal linkage function. The product features an IP54 protection rating and can operate stably in an environment ranging from -20℃ to 50℃, providing efficient and reliable aviation lighting capabilities for night inspections, search and rescue operations, and security flights.

Key Core Parameters

Illumination Distance: 150MProtection Grade: IP54Weight: 95.6gPower: 40W

Core Functions

Lighting Illumination

One-click on/off with 14° concentrated lighting, boasting a maximum illumination distance of 150 meters.

Gimbal Linkage

Supports precise gimbal angle adjustment from -90° to +35° and can be linked with the gimbal to realize synchronous control of the light direction and the gimbal camera direction, maintaining a stable viewing angle and accurate target pointing.

Multi-color Strobe

Integrated with multiple RGB lamp beads, supporting multi-color strobe in red, green, blue, yellow, white and other colors with customizable flashing colors and frequencies.

Application Fields

Traffic Law Enforcement

During missions, the searchlight accurately locks on key areas for illumination. The gimbal can be precisely adjusted and linked with the camera to achieve synchronous lighting and evidence collection, providing stable and reliable fill light and positioning capabilities for traffic law enforcement.

Emergency Rescue

The multi-color strobe warning light can quickly mark positions in emergency rescues, enhancing visual warning effects and gaining more response time for rescue teams.

Night Rescue

In rescue and relief missions, emergency rescue tools can be accurately airdropped. Lighting and strobe functions are used to mark safe passages, and synchronous voice instructions make ground rescue operations more efficient and coordinated.

Security Patrol

It provides powerful long-distance illumination for night patrols, achieving clear visual coverage, improving the recognition efficiency and operational safety of security patrols. Combined with concentrated lighting, it enables quick detection of abnormal situations.

Overall Specifications

Technical Parameter Notes

Compatible Models

• Directly compatible: DJI Matrice 4D, DJI Matrice 4TD
• Adapter bracket required: DJI Matrice 4E, DJI Matrice 4T

DOWNLOAD

T40 user manual
