T40L LASER INDICATOR LAMP

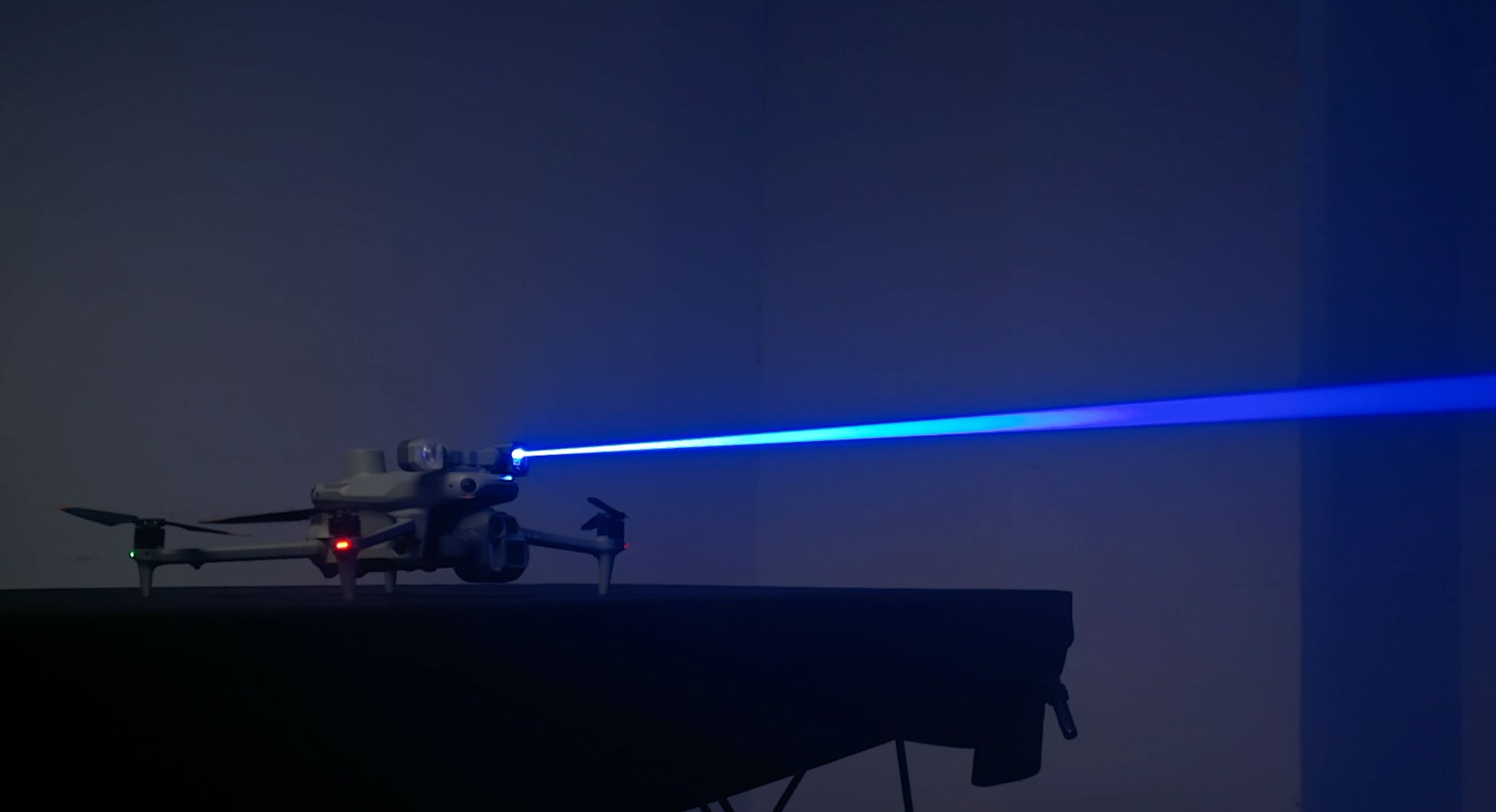

  The JZ_T40L LASER INDICATOR LAMP adopts a lightweight all-in-one design and is compatible with DJI Matrice 4E/4T and 4D/4TD series models. Equipped with a brushless self-stabilizing gimbal, it enables precise pointing with a pitch range of -90° to +35°. The light unit integrates 3 RGB lamp beads and a high-power high-brightness laser; the RGB colors are adjustable, and the sharp light beam is visible 360°. With a 14° concentrated lighting angle, the maximum illumination range reaches 150 meters, featuring high central illuminance and a wide coverage area. It supports switching between high-power laser and lighting illumination, as well as mode switching including brightness adjustment, high-light strobe and multi-color warning, and is equipped with a gimbal linkage function. It can operate stably in an environment of -20℃ to 50℃, providing efficient and reliable aerial lighting capabilities for night patrols, search and rescue, and security flight operations.

Key Basic Parameters

Laser Power: 30WIllumination Distance: 150MWeight: 101gControl Method: DJI Pilot 2

Core Functions

Laser Indication

High-power high-brightness laser with adjustable RGB three colors, the sharp light beam is visible 360°.

Lighting Illumination

One-click on/off, 14° concentrated lighting with a maximum illumination distance of 150 meters.

Gimbal Linkage

Supports precise adjustment of the gimbal angle from -90° to +35°, and can link with the gimbal to realize synchronous control of the light direction and the gimbal camera direction, maintaining a stable viewing angle and target pointing.

Multi-color Strobe

Integrated with multiple RGB lamp beads, supporting multi-color strobe of red, green, blue, yellow, white, etc., with customizable flashing colors and frequencies.

Application Fields

Accident Warning

The laser can clearly indicate accident locations over a long distance. Distinguish danger levels through RGB color switching, and accurately point to the target area with gimbal linkage, effectively reminding incoming vehicles to slow down and avoid in advance, and improving night and long-distance warning effects.

Emergency Search and Rescue

Quickly mark the target position to help ground teams lock the direction rapidly. The RGB three colors can distinguish different rescue instructions, improve coordination efficiency and shorten the search and rescue response time.

Night Patrol

Identify suspicious areas or key targets over a long distance. The stable light beam moves with the UAV to achieve dynamic indication and continuous tracking, improving the efficiency and safety of law enforcement and patrol tasks.

Order Guidance

Demarcate air warning areas or key attention areas. Accurately point to the target with gimbal linkage, and convey different prompt information through color changes, enhancing the visual expression ability of on-site command.

Overall Specifications

Technical Parameter Notes

Compatible Models

• DJI Matrice 4D, DJI Matrice 4TD (direct compatibility)
• DJI Matrice 4E, DJI Matrice 4T (adapter bracket required)

DOWNLOAD

User manual Please refer to T40 user manual
