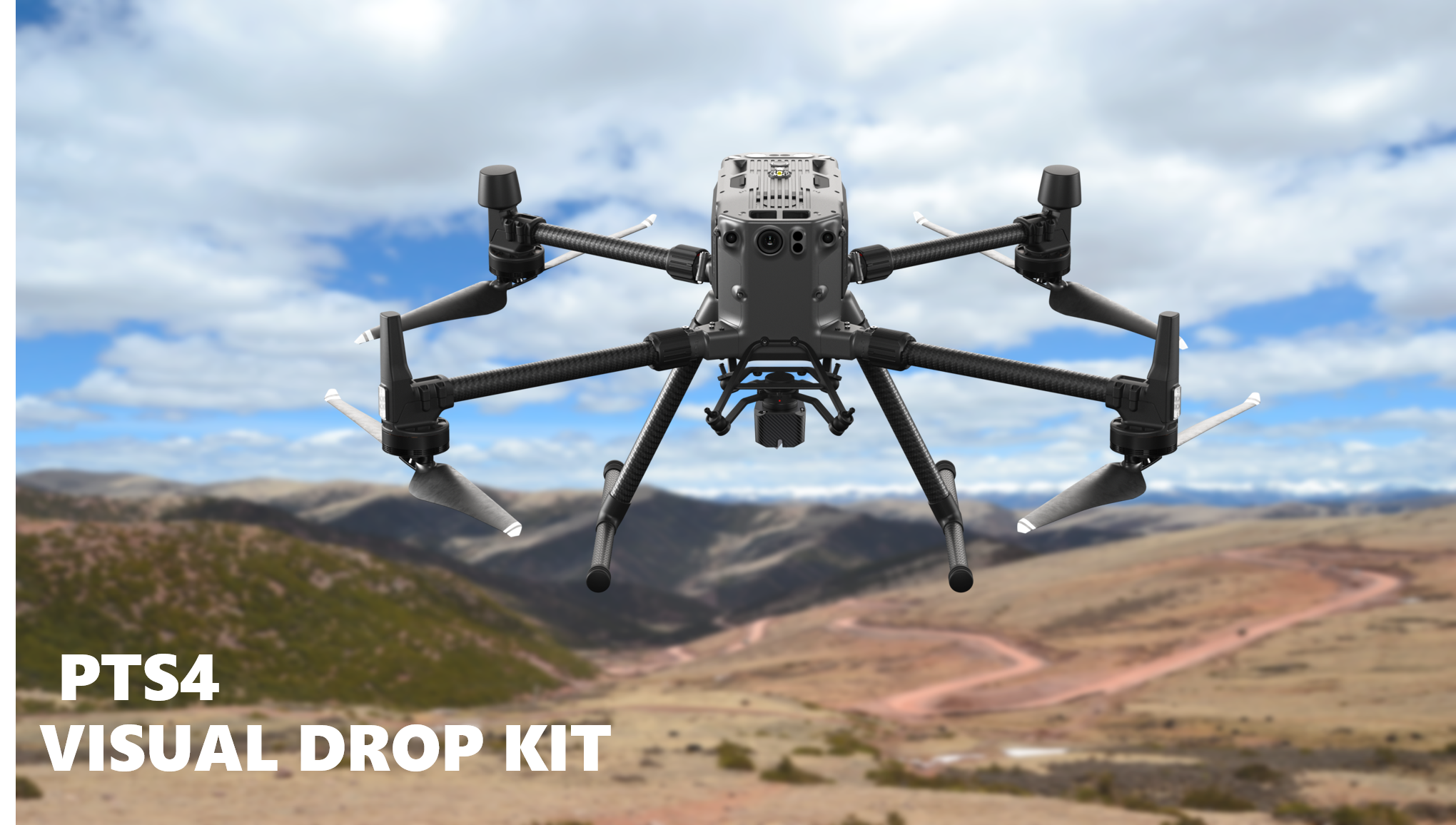

PTS4 VISUAL DROP KIT

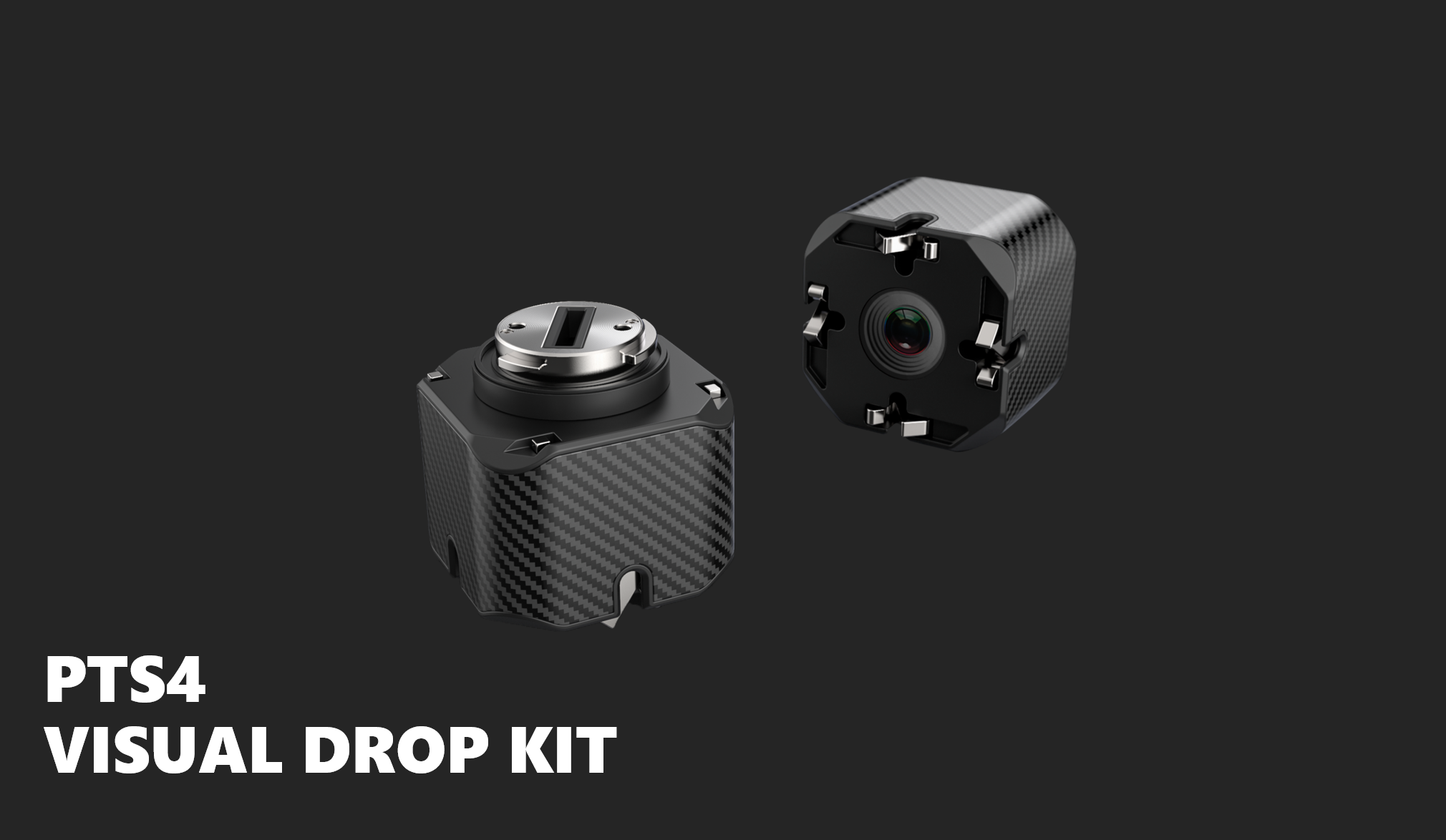

PTS4 VISUAL DROP KIT is a multi-functional airdrop device developed based on DJI PSDK. It weighs only 135g, integrated with a full-function cameras and four groups of airdrop hooks witch can release without sequence, and can easily hung and release load without power on. The PILOT APP control displays the hook status in real time, and the HD image transmission helps to aim at target accurately. It can release immediately with a slight click. The minimum load weight is 0.1g, and the maximum load weight is 5kg. Suitable for Matrice M200 V2 series and M300 RTK.
|
4 Release Segment |
1080P Camera |
SkyPortInterface |
DJI PILOT control |
SPEC
|
Overall Parameters |
|
|
Product Name |
PTS4 Drone Visualized Drop Kit |
|
Supported Aircraft |
Matrice300 RTK Series |
|
Dimension |
57.4 x 57.4 x 54 mm |
|
Interface |
DJI SkyPort V2 |
|
Rated power |
10W |
|
Weight |
135g |
|
IP Rating |
IP4X |
|
Payload |
|
|
Section Num |
4 |
|
Rope length |
/ |
|
Single load |
Maximum 5kg，The actual load Subject to drone load |
|
Total load |
Maximum 20kg，The actual load Subject to drone load |
|
Drop Function |
Single-drop & Full-drop |
|
Rope Function |
/ |
|
Installation mode |
Quick disassembly |
|
Camera Parameters |
|
|
Resolution |
1920*1080 |
|
Coding format |
H264 |
|
FOV |
86° |
|
Image transmission distance |
Same with Drone |
|
Temperature Parameters |
|
|
Operating Temperature |
-10℃-50℃ |
|
Storage Temperature |
-20℃-60℃ |
