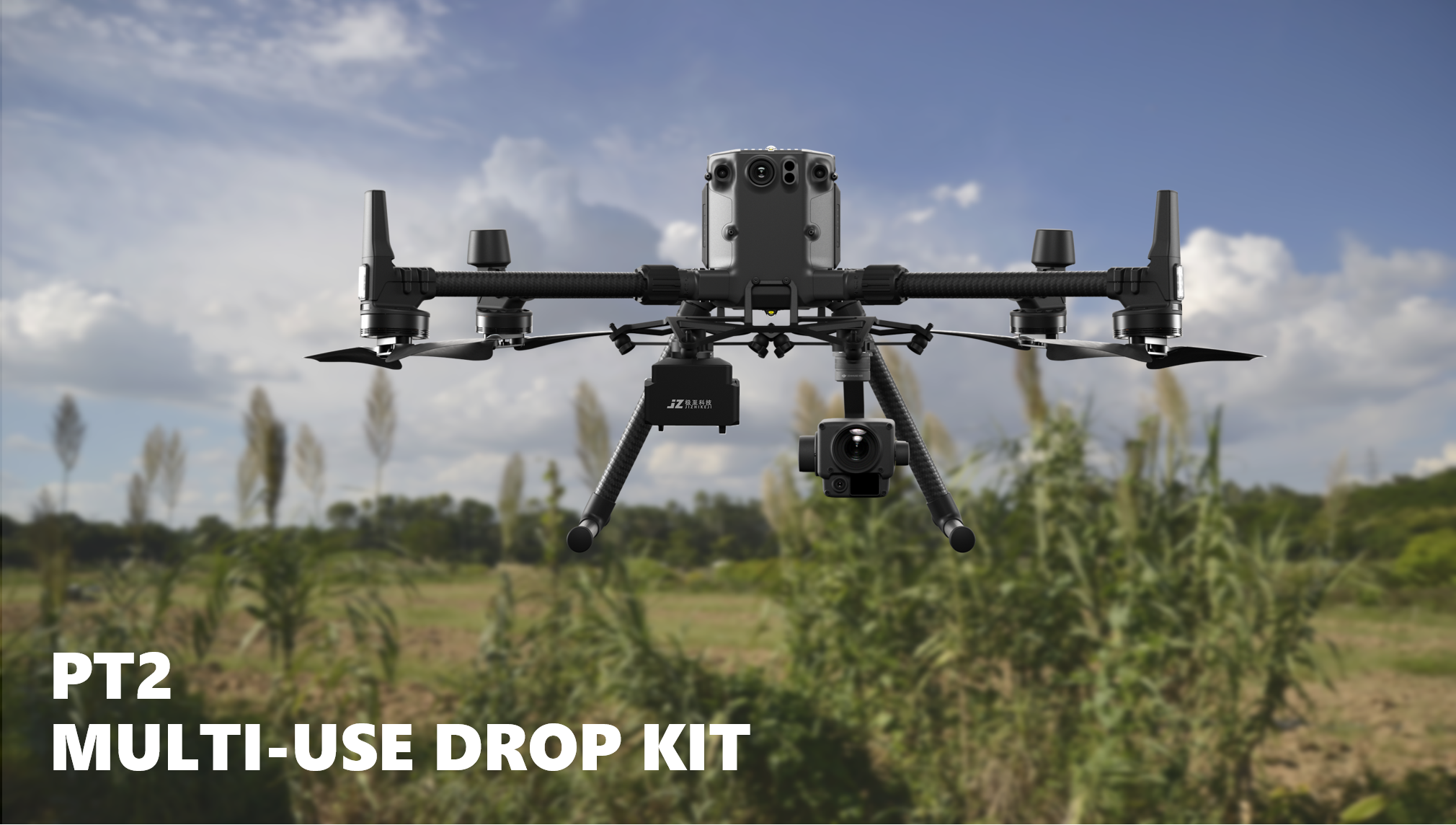

PT2 MULTI-USE DROP KIT
PT2 MULTI-USE DROP KIT is a multi-functional airdrop device developed based on DJI PSDK, which is suitable for DJI original gimbal and weighs only 250g. It supports DJI PILOT APP control. It can be used as a 2 segment airdrop or cooperate with the take-up reel to realize rope retraction and release. In case of emergency, and to protect the device and drone, it can drop the reel quickly with one key. It is suitable for DJI Matrice M300 series.
|
2 Release segment |
10MRope |
SkyPortInterface |
DJI PILOT control |
SPEC
|
Overall Parameters |
|
|
Product Name |
PT2 Drone Rope-Drop |
|
Supported Aircraft |
Matrice300 RTK Series |
|
Dimension |
88.8 x 58 x 75 mm |
|
Interface |
DJI SkyPort V2 |
|
Rated power |
24W |
|
Weight |
250g |
|
IP Rating |
IP4X |
|
Payload |
|
|
Section Num |
2 |
|
Rope length |
10m |
|
Single load |
Maximum 5kg，The actual load Subject to drone load |
|
Total load |
Maximum 10kg，The actual load Subject to drone load |
|
Drop Function |
Single-drop & Full-drop |
|
Rope Function |
One key lifting & One key release |
|
Installation mode |
Quick disassembly |
|
Camera Parameters |
|
|
Resolution |
/ |
|
Coding format |
/ |
|
FOV |
/ |
|
Image transmission distance |
/ |
|
Temperature Parameters |
|
|
Operating Temperature |
-10℃-50℃ |
|
Storage Temperature |
-20℃-60℃ |
