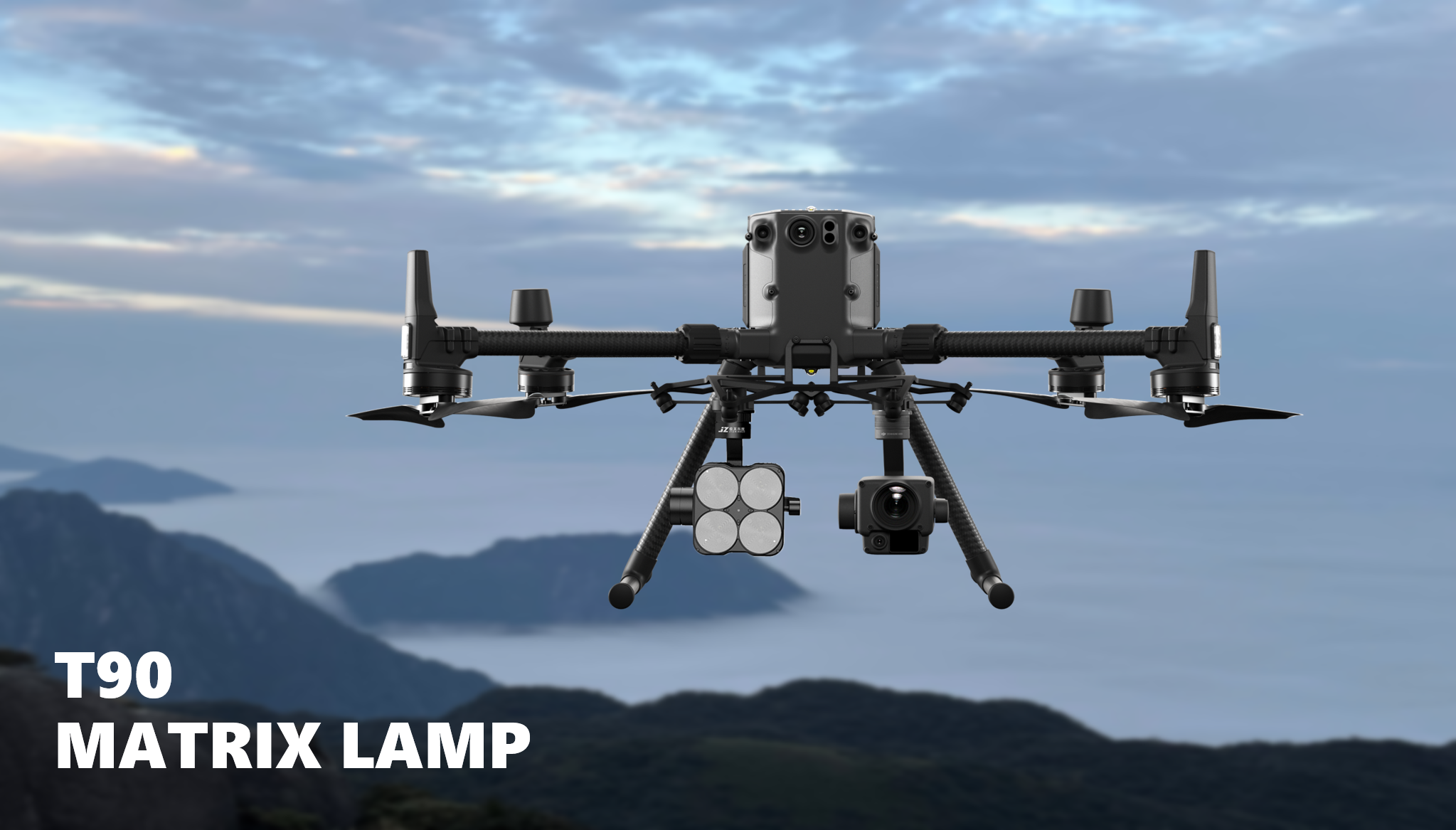

T90 MATRIX LAMP
T90 MATRIX LAMP is a searchlight adopts four groups of LED lighting combination, with luminous flux up to 20000 lumens, which can effectively illuminate. The lighting distance is more than 150 meters, and the maximum lighting area is more than 1400 square meters. Integrated with three-axis gimbal, could do 360 °control.
It supports the linkage of light camera and double PTZ, brightness adjustment, strong light explosion and flash and other modes. Self-regulating cooling fan, efficient heat dissipation, IP45 waterproof and dustproof, not afraid of rain and keeping providing brightness.
|
20000 lumens |
1400m²Lighting area |
3-axis pan tilt |
150 meters lighting distance |
SPEC
|
Overall Parameters |
|||
|
Product Name |
T90 Drone Hybrid Searchlight |
||
|
Interface |
DJI SkyPort V2 |
||
|
Dimensions |
123 x 142 x 125 mm |
||
|
Weight |
470g |
||
|
IP Rating |
IP4X |
||
|
Supported Aircraft |
Matrice 300 RTK、Matrice 200 V2 SERIES |
||
|
Maximum Power |
128W |
||
|
Lighting Parameters |
|||
|
Lighting Mode |
Hybrid Lighting |
||
|
FOV |
17° |
||
|
Lighting distance |
50m |
100m |
150m |
|
Lighting area |
150㎡ |
620㎡ |
1400㎡ |
|
Center illuminance |
86 Lux |
25 Lux |
12 Lux |
|
Gimbal Parameters |
|||
|
Stabilized System |
3-axis (tilt, roll, pan) |
||
