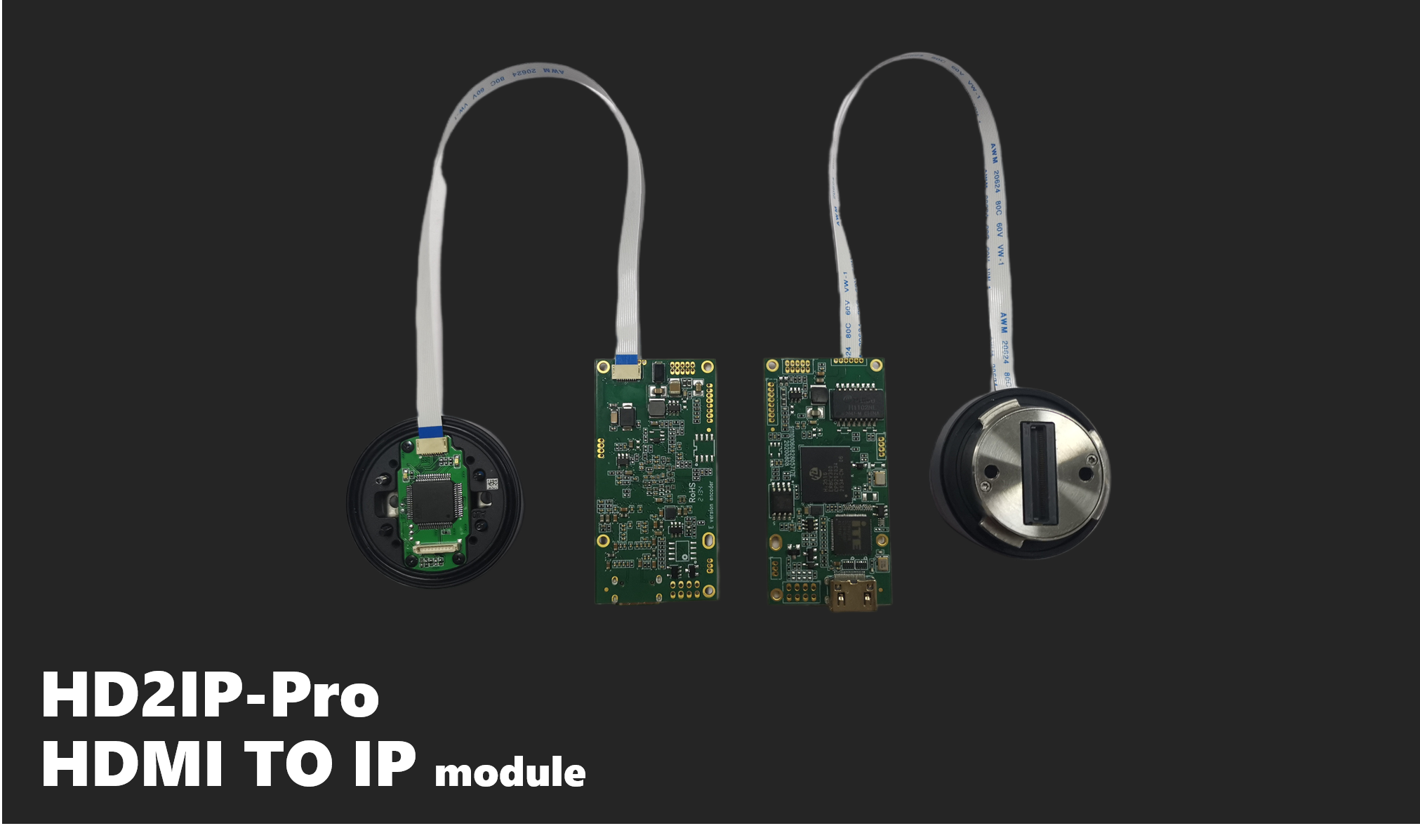

HDMI to IP Pro
HDMI-IP signal converter Pro version can transmit HDMI signal output equipment to the remote control terminal through the unmanned aerial vehicle. Integrated with DJI SKYPORT interface, plug and play.
DJI SKYPORT V2 |
1080p processor |
Multi-network protocol |
Extensible |
SPEC
Overall Parameter |
|
Power consumption |
≤3W |
Board Dimension |
63*30mm |
Board Weight |
≤100g |
Operating Temperature |
-10℃ to 55℃ |
Interface |
DJI SkyPort V2 |
Resolution |
HDMI-1080P |
Video coding |
H.265 code;H.264 encode |
Audio coding |
Aac audio coding;Sampling rate: 48000khz |
Stream type |
CBR & VBR:32kbps-4mbps adjustable |
Video frame rate |
50Hz: 1-25 fps |
Bit stream size |
Main stream: 1920*1080、1280*720; Sub code stream:1280*720、720*576、640*480、640*352、320*240 |
TS Video stream |
http://192.168.1.100:80/ts/0(main stream) http://192.168.1.100:80/ts/1((sub stream) |
RTSP flow |
rtsp://192.168.1.168:554/main(main stream) |
Network protocol |
TCP / IP,UDP, RTP,RTSP,RTCP, HTTP,DNS,RTMPTS stream, DHCP |
Network interface |
100M/100M adaptive network |
Extension interface |
1*USB(for wifi/4G);1*audio input&output |
