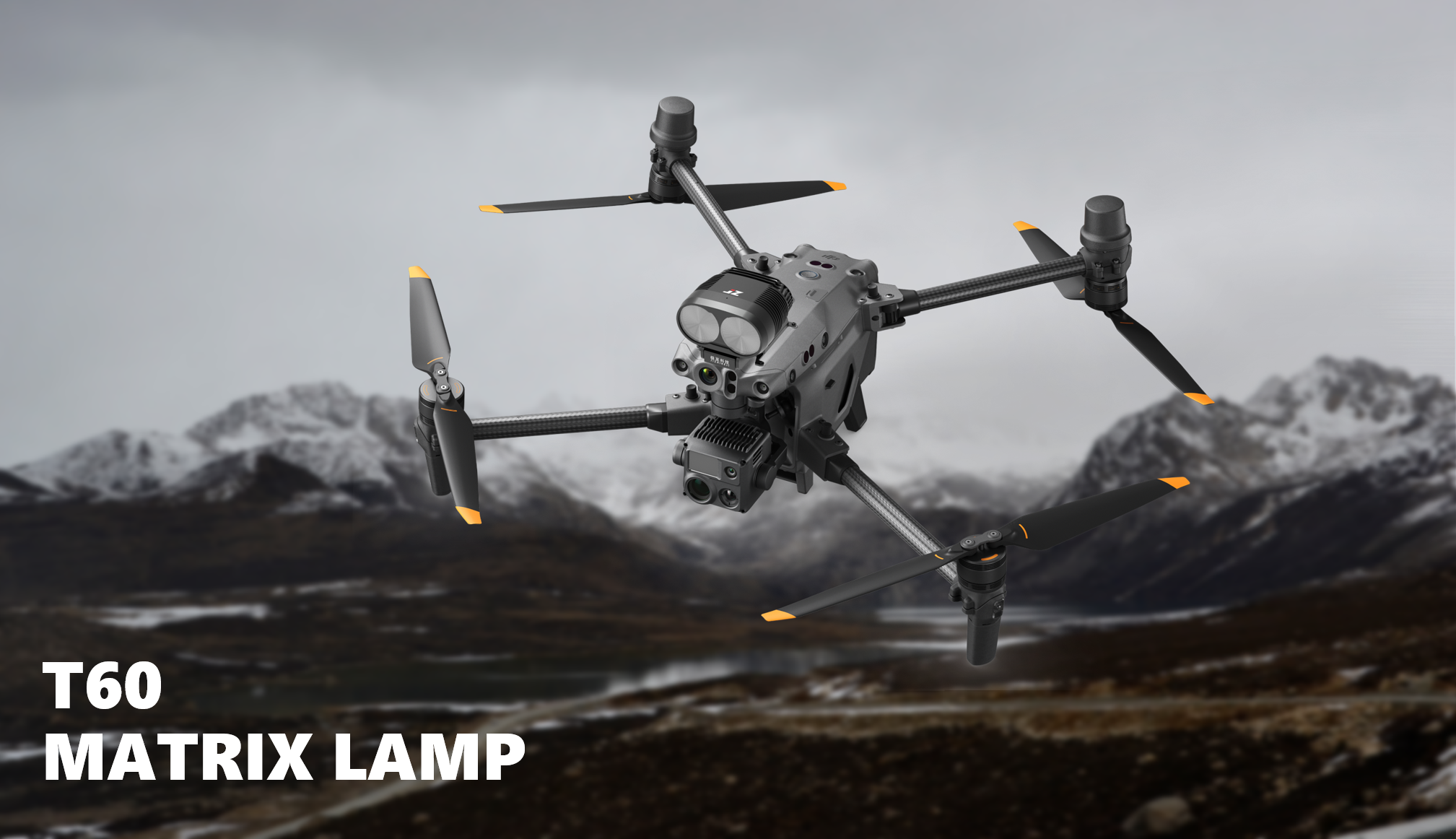

T60 MATRIX LAMP
T60 MATRIX LAMP is equipped with two sets of optical lenses, which can illuminate a 16° uniform beam. It’s illumination distance exceeds 150m while covering 150 ㎡area in 50m height. T60 is compatible with standard quick release brackets and the controllable gimbal can be linked with the camera. Support DJI Pilot, brightness adjustment, strong light flashing and other modes.
|
8000 Lux flux |
150m lighting |
16°Uniform light |
1400㎡ lighting |
SPEC
|
Overall Parameters |
|||
|
Product Name |
Searchlight T60 |
||
|
Connections |
DJI-SDK |
||
|
Dimensions |
91.4 x 88.5x 62.2 mm |
||
|
Weight |
190g |
||
|
IP Rating |
IP4X |
||
|
Supported Aircraft |
Matrice 30 |
||
|
Maximum Power |
60W |
||
|
Lighting Parameters |
|||
|
Lighting Mode |
Combined lighting |
||
|
FOV |
16° |
||
|
Lighting distance |
50m |
100m | 150m |
|
Lighting area |
150m² |
620m² | 1400m² |
|
Center illuminance |
46Lux |
13Lux | 7Lux |
|
Gimbal |
|||
|
Stabilized System |
Support 0 to - 85 ° pitching and gimbal camera linkage |
||
|
Mounting |
Quick detachable bracket |
||
|
Temperature Parameters |
|||
|
Operating Temperature |
-10 ℃ to 50 ℃ |
||
|
Storage Temperature |
-20 ℃ to 60 ℃ |
||
