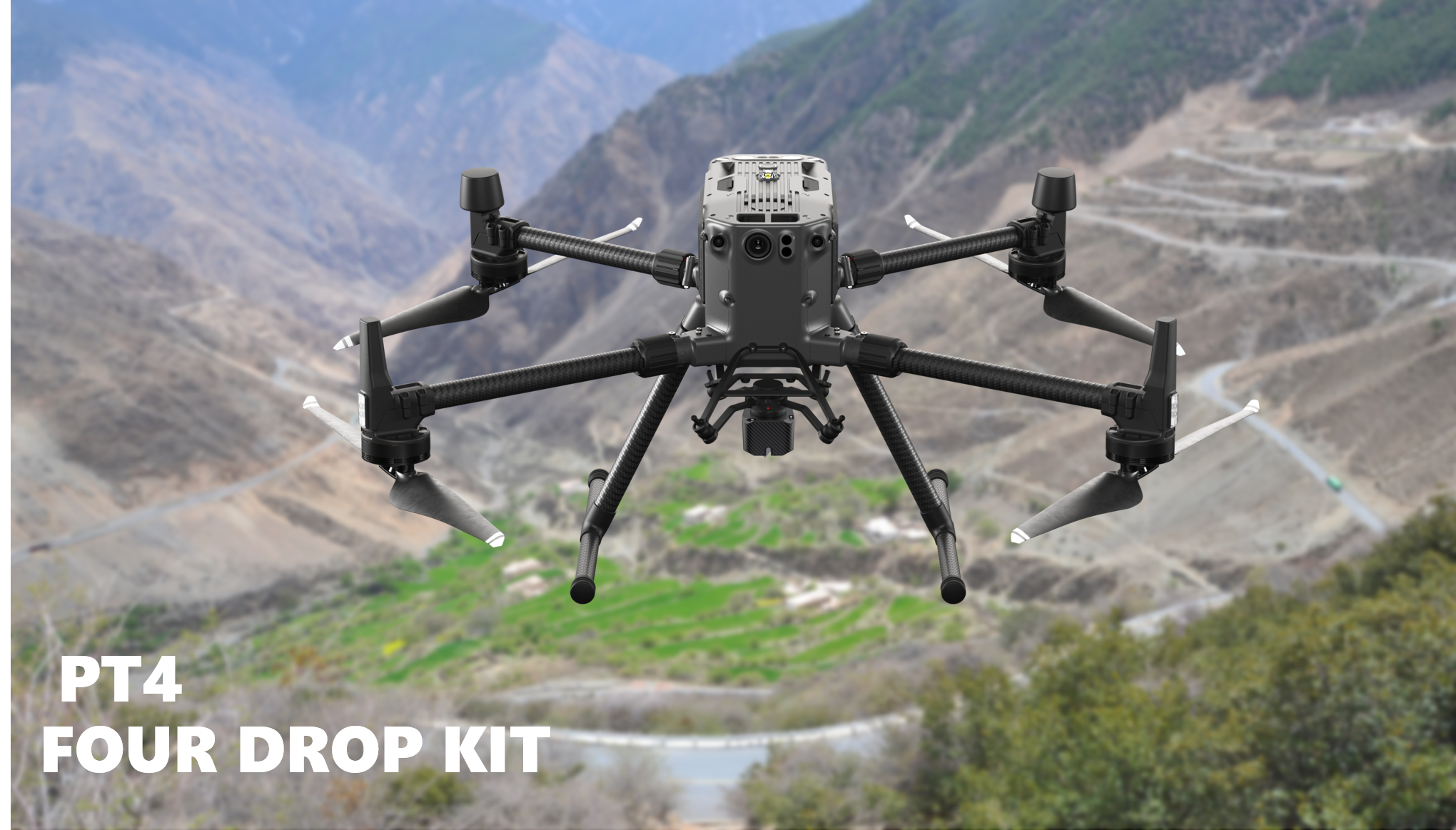

PT4 FOUR DROP KIT
PT4 FOUR DROP KIT is a 4 segments multi-functional airdrop device developed based on DJI PSDK, which is suitable for DJI original gimbal and weighs only 120g. It supports DJI PILOT APP control and has four groups of airdrop hooks in unlimited controlling order. It can easily hung and release load without power on. The PILOT APP control displays the hook status in real time, and supports single hook release and one click fully release. The minimum load weight is 0.1g, and the maximum load weight is 5kg. It is suitable for DJI Matrice M200 V2 and M300 series.
|
|
|
|
|
|
4 segments |
2. 5Kg |
Sykyport interface |
DJI PILOT control |
SPEC
|
Overall Parameters |
|
|
PTS4 Drone Drop Kit |
|
|
Supported Aircraft |
Matrice300 RTK Series |
|
Dimension |
57.4 x 57.4 x 54 mm |
|
Interface |
DJI SkyPort V2 |
|
Rated power |
10W |
|
Weight |
120g |
|
Payload |
|
|
Number of Segment |
4 |
|
Rope length |
/ |
|
Single load |
Maximum 5kg，The actual load Subject to drone load |
|
Total load |
Maximum 20kg，The actual load Subject to drone load |
|
Drop Function |
Single-drop & Full-drop |
|
Rope Function |
/ |
|
Installation mode |
Quick disassembly |
|
Temperature Parameters |
|
|
Operating Temperature |
-10℃-50℃ |
|
Storage Temperature |
-20℃-60℃ |
