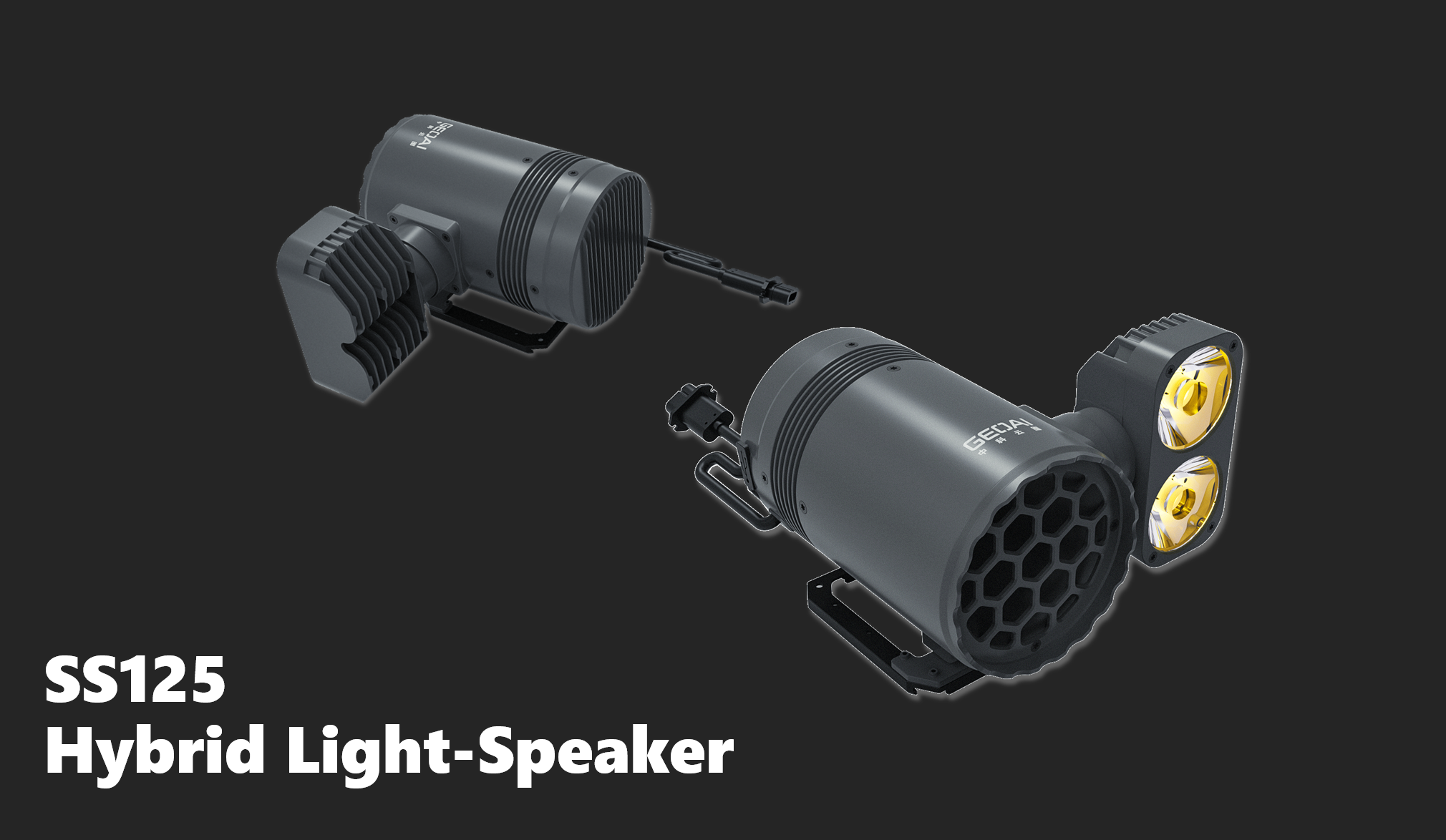

SS125 HYBRID LIGHT-SPEAKER
SS125 HYBRID LIGHT-SPEAKER is an integrated payload with both broadcast and lighting functions for DJI drone M30. The integrated and portable design free the pilots to carrymultiple devices when performing tasks,making emergency search and rescue tasks more efficient. The maximum sound pressure of the speaker is 125db and the light can reach 10lux in 100m; Through DJI PILOT,SS125 can support TTS text-to-speech calls,real-time calls,voice file upload and pitch synchronously.
SPEC
|
Technical Parameters |
|
|
Model |
SS125 |
|
Interface |
DJI PSDK |
|
Weight |
274g（with bracket） 268g（without bracket） |
|
Dimensions |
104*124*76mm |
|
Light Power |
40W |
|
Speaker Power |
20W |
|
Power voltage |
13.6V~24V |
|
Luminous flux |
2LUX@100m |
|
Lighting FOV |
15° |
|
Lighting distance |
120m |
|
Spot diameter |
56m |
|
Lighting area |
986㎡ |
|
Mechanical Range |
Pitch -120°~+45° |
|
Max Sound pressure |
120dB |
|
Speaker Function |
Real-time broadcast |
|
Recording playback |
|
|
Audio file playback |
|
|
TTS |
|
|
Audio format |
Wav, mp3 |
|
Support APP |
DJI Pilot /DJI Pilot 2 |
|
Operating TEMP |
-20℃~+50℃ |
|
Supported drones |
M30 series |
