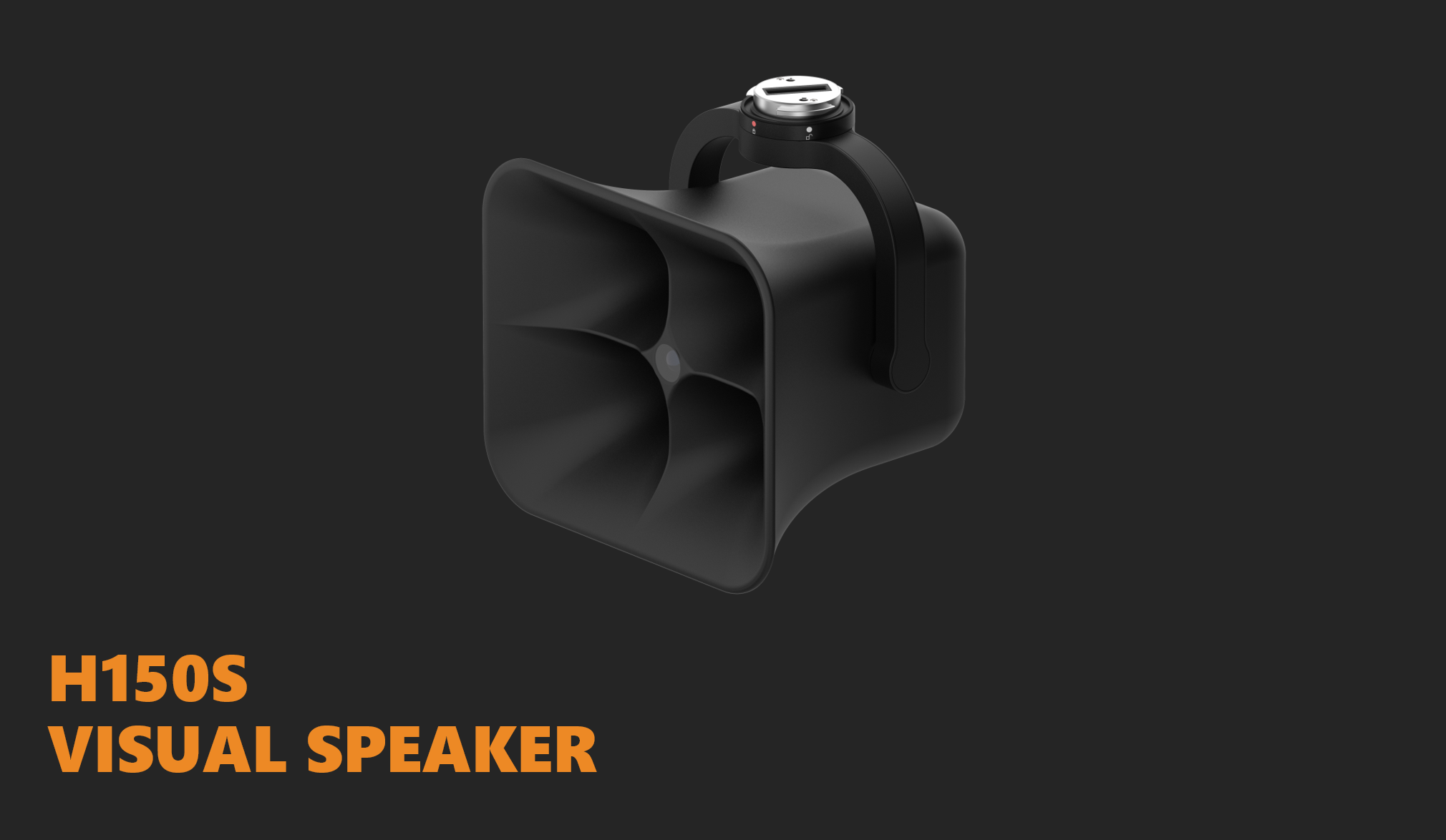

H150s VISUAL SPEAKER

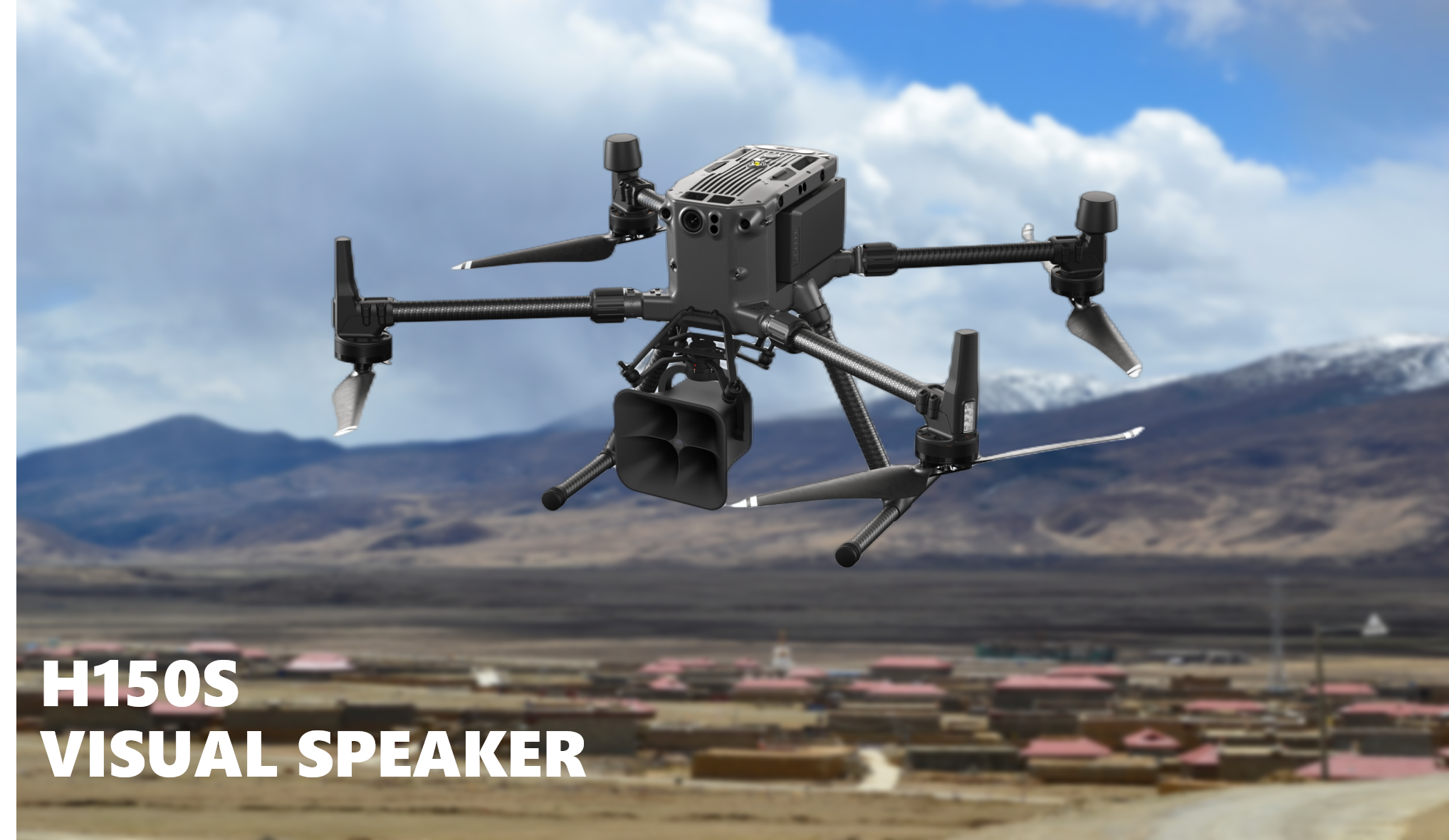

H150S VISUAL SPEAKER is the most outstanding long range acoustic device (LRAD) on the market. It has the characteristics of clear sound, strong penetration, ultra-high sound pressure small size, light weight and low energy consumption. Sound can travel as far as 1000 meters. Low power consumption, excellent magnetic shielding performance, specially developed for drone industry applications. Through DJI SkyPort, it can be seamlessly compatible with MATRICE M300RTK.
|
Built-in Camera 1080P |
The volume >130dB |
Effective distance >800m |
Weight <520g |
SPEC
| Overall Parameters | |
| Product Name | Visual Speaker |
| Modle | H150S |
| Interface | DJI SkyPort V2 |
| Dimension | 154×155×130mm |
| Weight | <520g |
| IP rating | IP4X |
| Supported Aircraft | Matrice300 RTK |
| Maximum Sound pressure | 130db |
| Sound transmission distance | >800m |
| Rated Power | 50W |
| Speaker function | Text broadcast; Real-time broadcast; Recording-broadcast; Audio files Playback; |
| Camera Parameters | |
| Resolution | 1080P |
| Coding format | H264 |
| Camera function | Photograph, video record, video playback, video download |
| Gimbal Parameters | |
| Gimbal system | Steering geer head |
| Rotation range | pitch：-90°~0° |
| Installation | DJI SKYPORT |
| Temperature Parameters | |
| Operating Temperature | -10 ℃ to 50 ℃ |
| Storage Temperature | -20 ℃ to 60 ℃ |
Download
PS：H150S operation refers Manual H150
